Cloud-IQ

The next chapter in #connected software defined radios.

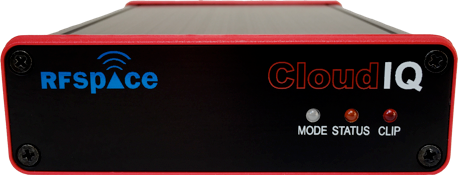

The Cloud-IQ is the latest high performance software defined receiver from RFSPACE. The Cloud-IQ offers two modes of operation. The IQ mode, offers 24 bit, IQ streaming to the PC over ethernet. This mode uses our SpectraVue software or third party programs like SDR-Radio, SDR# and GNU radio. The stand-alone “Cloud” mode includes a built-in internet server. In this mode, the radio performs the tuning and demodulation of signals and transmits the demodulated information back to a PC, OS-X, Linux or Android client anywhere in the world.



How does it compare to the SDR-IQ:


  1. -Cloud-IQ offers 1.8 MHz IQ sample rate vs. 196 kHz of the SDR-IQ. Uses ethernet interface vs. USB. Can be placed far away from the computer or anywhere in the world.

  2. -High resolution decimator with 24 bit output resolution.

  3. -Sensitivity is over 15 dB better.

  4. -Broader frequency coverage of 9 kHz to 56 MHz mode.

  5. -Includes low bandwidth cloud mode for access anywhere in the world.

  6. -Powered by a small power supply or USB powered.

  7. -Includes an internal adjustable trigger for capture of repetitive signals (pulsars, CODAR, chirps).

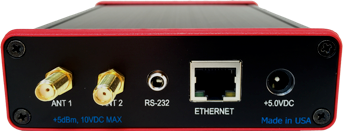

  8. -2 antenna input ports for remote or local selection of two antennas.

  9. -All HD2, HD3 products better than -90dBc at -1dB below clipping point.

  10. -Includes a wideband 56 MHz wide spectrum analyzer mode.

  11. -10x faster interface

  12. -Optional RS-232 3.5mm to DB9 cable for external radio control.

  13. -Built-in TCXO

Applications:


  1. -HF and VHF monitoring

  2. -External high resolution panoramic and spectrum displays

  3. -GMDSS networks

  4. -Internet of Things (IoT) remote access point

  5. -Geolocation of remote signals

  6. -Distributed radio and sensor systems

  7. -Remote signal surveillance

  8. -Ionospheric sounding

Includes:


  1. -Cloud-IQ receiver

  2. -USB power cable

  3. -5V 1 Amp USB output power supply with US blade connector 240 V capable.

  4. -Ethernet cable

  5. -SpectraVue software CD

  6. -SDRanywhere application for Android, PC and Mac OS

Availability: In Stock


Pricing: $629

More information


Please email info@rfspace.com for more information or click logos below to order from our distributors:

Cloud-IQ Files Section:


  1. -Cloud-IQ Getting Started Guide


These are the getting started instructions.


  1. -CloudSetup User Guide v0.03


This guide explains networking basics and use of the CloudSetup application to configure
  IP addresses etc.


  1. -CloudSetup Application and Firmware Upgrade Utility for Windows and Mac OS v1.08

    CloudSetup application to configure Cloud-IQ and for Windows and MAC OS.

  This utility is also used to upgrade the firmware of the Cloud-IQ and CloudSDR radios.
  Updated firmware files are also included with latest version of SpectraVue


    Includes latest uP App firmware and FPGA configuration codes for Cloud-IQ:

        Application Firmware 0  (IQ Streaming) =
0.13

        Application Firmware 1  (Cloud Mode) = 0.15

        FPGA  Configuration 0  (IQ Streaming) = 6
        FPGA  Configuration 1  (Spectrum Mode) =
3
        FPGA  Configuration 2  (Cloud Mode) =
3
        FPGA  Configuration 3  (IQ Spectrum Mode) =
3

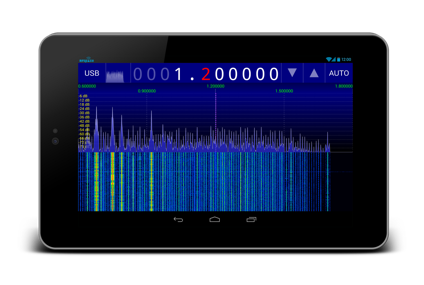

  1. -SDRanywhere Android Client External Link
    Application used to operate the Cloud-IQ in remote Cloud mode from an Android device.

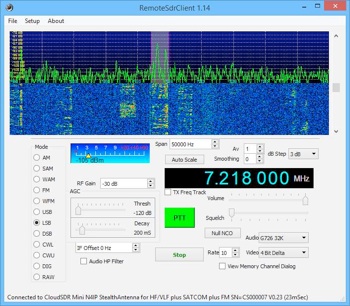

- RemoteSDRclient Application for Windows v1.20
Application used to operate the Cloud-IQ in remote Cloud mode


  1. -RemoteSDRclient Application for Mac OS v1.20
    Application used to operate the Cloud-IQ in remote Cloud mode


  1. -RemoteSDRclient User’s Guide v1.08
